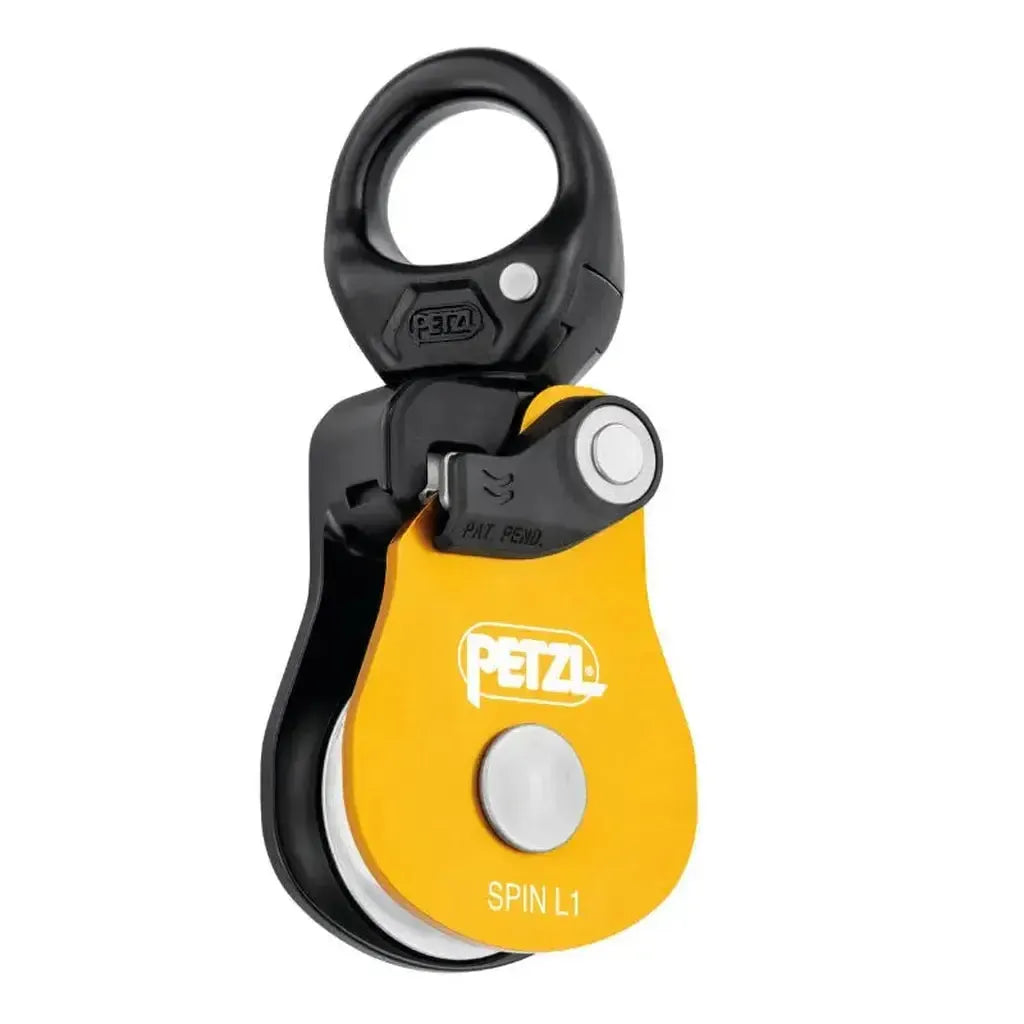

PETZL SPIN L Pulley
- Triple action opening of the movable side plate, easy and quick, even with gloves.
- Possibility of installing the rope and keeping the device connected to the anchor at the same time.
- Red indicator visible when the movable side plate is not locked.
- Specific design of the movable side plates that protect the passage of the rope.
instructions for use
Declaration of Conformity
Technical sheet
specs
Technical characteristics
SPIN L1
- Peso: 290 g.
- Materiales: aluminio, acero inoxidable y poliamida.
- Diámetro de cuerda mínimo: 7 mm.
- Diámetro de cuerda máximo: 13 mm.
- Tipo de roldana: rodamiento de bolas estanco.
- Diámetro de la roldana: 38 mm.
- Carga de utilización máxima: 4 x 2 = 8 kN.
- Carga de rotura: 36 kN.
- Rendimiento: 95 %.
SPIN L2
- Peso: 480 g.
- Materiales: Aluminio, acero inoxidable y poliamida.
- Diámetro de cuerda mínimo: 7 mm.
- Diámetro de cuerda máximo: 13 mm.
- Tipo de roldana: Rodamiento de bolas estanco.
- Diámetro de la roldana: 38 mm.
- Carga de utilización máxima: 8 kN.
- Carga de rotura: 36 kN.
- Rendimiento: 95 %.
- Polea doble de altísimo rendimiento con eslabón giratorio.
SPIN L1D
- Peso: 425 g.
- Materiales: aluminio, acero inoxidable y poliamida.
- Diámetro de cuerda mínimo: 8 mm.
- Diámetro de cuerda máximo: 13 mm.
- Tipo de roldana: rodamiento de bolas estanco.
- Diámetro de la roldana: 40 mm.
- Carga de utilización máxima: 3 x 2 = 6 kN.
- Carga de rotura: 36 kN.
- Rendimiento: 93 %.
- Esta polea simple cuenta con un sentido de rotación único.
- Las poleas SPIN L están especialmente creadas para simplificar la instalación de sistemas de izado, tirolinas y desviaciones de carga en trabajos en altura.
- Su estructura permite una apertura incluso cuando está fijada al anclaje, facilitando y agilizando las intervenciones.
- Con una construcción robusta de aluminio, acero inoxidable y poliamida, estas poleas ofrecen un rendimiento y durabilidad excepcionales, siendo ideales tanto para profesionales de rescate como para tareas de poda y otras actividades que requieran alta fiabilidad.
certifications
- CE
- EN-12278
- NFPA-2500 Pulley Technical Use
- UIAA/ XF 494:FZL-H-Q 9.5/11
